"Our ability to respond quickly to an incident is of utmost importance and our system allows rapid retrieval of video from any server or camera by time, date or motion events."
B. King, Supervisor Teleproduction and CCTV Systems, Conroe ISD.

IP, Analog and Hybrid Video Surveillance Systems

CompleteViewTM, Salient's comprehensive software application features easy to use video recording, event management and alarm and notification tools.  Flexible delivery options include CompleteView installed on Salient's purpose-built Hybrid DVR's, NVR's and Enterprise level servers, a variety of leading hardware vendors such as Dell, HP and IBM, or as software only.  Seamless IP and Analog camera support gives customers the freedom to choose the best technology to meet their needs.

The CompleteView product line is fully upgradable from one version to the next so you get exactly what you need, when you need it.

Video Management Software Overview

CompleteView Product ONE Pro Enterprise
Max. Cameras 25 Unlimited Unlimited
Max. Servers 1 Unlimited Unlimited
Max. Cameras in live view 25 64 per monitor 64 per monitor
View Across servers No Yes Yes
Multi Server administration No Yes Yes
Centralized Client Configuration No Yes Yes
Centralized Server Software Distribution No Yes Yes
Centralized Client Software Distribution No Yes Yes
Multi Server Configuration No No Yes
Active Directory integration No No Yes
Upgrade Options Pro, Enterprise Enterprise NA
Clients included: Video, Mapping, Web, Alarm Yes Yes Yes

Hardware Platforms

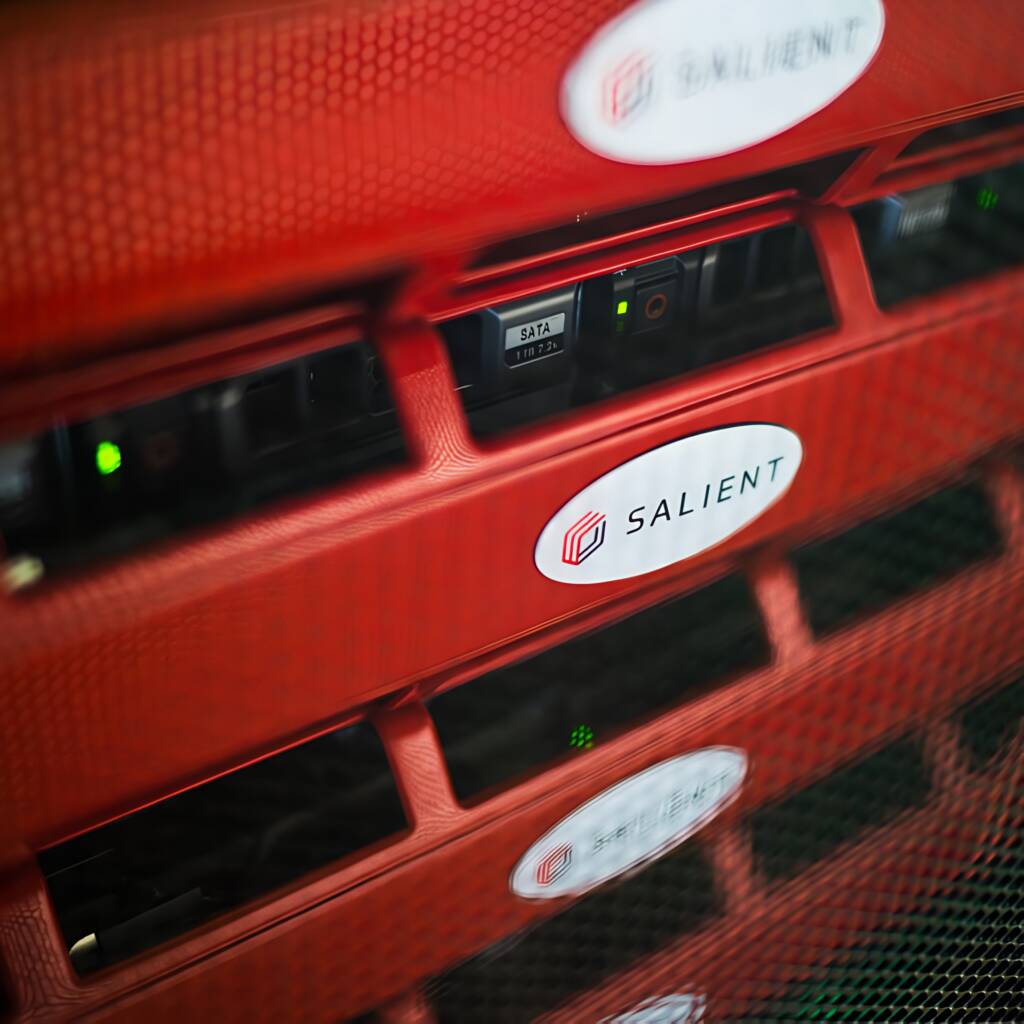

Each Workstation level and Enterprise level server is purpose built for the rigors of continuous-duty operation, using best-in-class components that provide the reliability and manageability required by mission critical video surveillance architecture and installations. The Hardware Brochure offers a complete overview of the below units.

S500 RM1000 RM1100 RM2500 RM2800
Total Camera Sources 25 50 50 100 100
CIF Resolution 240 750 750 1000 2000
Intel Celeron Dual Core
Intel Core i5 Quad Core
Intel Xeon Quad Core
Memory 1GB 2GB RAM 2GB RAM 2GB RAM 2GB RAM
Optical Disk DVD/CD RW DVD RW DVD-RW/DVD ROM DVD ROM (only) N/A
Ethernet Port 1 Gb 1 Gb 1 Gb Dual Gb Dual Gb
Internal Storage 1TB 1 - 3TB 1 - 4TB RAID5 1 - 5TB RAID5 1 - 12TB RAID5
Microsoft Windows OS XP Pro SP3 XP Pro SP3 2003 Web 2003 Web 2003 Web
HDD Hot Swap N/A N/A N/A 8 16

Workstation Level

  • The S500 (pdf) is a compact, reliable network video recorder with flexibility for use as a desktop or tower unit.
  • The RM1000 (pdf) is rack mountable in 4U of standard 19" rack space and ships with a universal sliding rail kit.
  • The RM1100 (pdf) is rack mountable in 4U of standard 19" rack space, supports internal RAID5 video storage and ships with a universal sliding rail kit.
  • The CVD1000 (pdf) is integrated into Dell Precision Workstation systems and consumes 5U of rack space when using the optional sliding shelf kit.

Enterprise Level

  • The RM2500 (pdf) is rack mountable in 3U of standard 19" rack space and ship with a universal sliding rail kit. The 250 GB system volume is protected with RAID1 redundancy with internal RAID5 video storage available from 1.0 TB to 5.0 TB of usable capacity.
  • The RM2800 (pdf) is rack mountable in 3U of standard 19" rack space and ship with a universal sliding rail kit. The 250 GB system volume is protected with RAID1 redundancy with internal RAID5 video storage available from 1.0 TB to 12.0 TB of usable capacity.
